T380/E380 Series

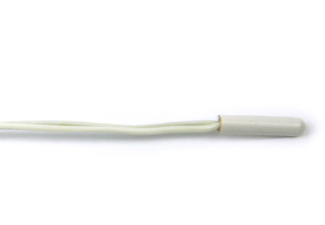

The T380/E380 Series features a chip thermistor encapsulated with epoxy in a molded vinyl cup. The 60 inch stranded tin-plated copper leads are #28 or #30 AWG and insulated with 105°C PVC zip cord. Typical maximum tip diameter is either 0.085 or 0.095 inches, and the overall length of the sensor is 60 inches.

Engineering Information

  • Typical diameters: 0.085 or 0.095 inches
  • Leads: tin-plated copper, 105°C PVC insulation zip cord
  • Material: epoxy, vinyl
  • Typical wire size: #28 to #30 AWG
  • Typical operating temperature range: 0°C to 70°C
  • E380 sensors RoHS compliant
  • Available in point-matched and interchangeable tolerances
