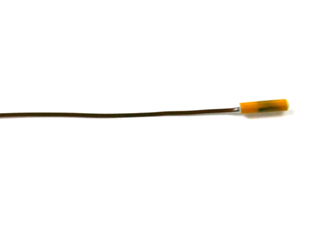

T350/E350 Series

The T350/E350 Series of miniature thermistor features fast response times and typical maximum tip diameters of 0.031 inches. These thermistors are ideal for use in applications where long lead lengths, small size or consistency of tip size are important.

Engineering Information

  • Typical diameter:0.031 inches
  • Leads: solid nickel, Polyesterimide insulation
  • Material: epoxy, polyimide
  • Typical wire size: #38 AWG
  • Typical operating temperature range: 0°C to 70°C
  • Typical Dissipation Constant:0.5mW/°C in still air*
  • Typical Time Constant: 4 Seconds in still air*
  • E350 sensors RoHS compliant
  • Available in point-matched and interchangeable tolerances

*Depends on mounting
