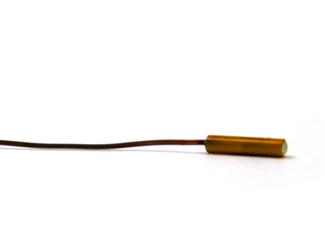

T340/E340 Series

QTI’s T340/E340 Series of mini thermistors offers improved thermal isolation and fast response times. These temperature sensors are a good Choice for potting inside small temperature probe housings.

Engineering Information

  • Typical diameter: 0.037 inches
  • Leads: solid nickel, Polyesterimide insulation
  • Material: epoxy, Polyimide
  • Typical wire size: #38 AWG
  • Typical operating temperature range: 0°C to 70°C
  • Typical Dissipation Constant: 1mW/°C in still air*
  • E340 sensors RoHS compliant
  • Available in point-matched and interchangeable tolerances

*Depends on mounting
