T330/E330 Series

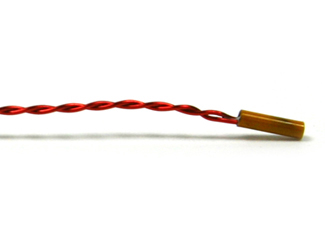

QTI’s T330/E330 Series of miniature temperature sensors features a small tip diameter of 0.037 inches and several standard lead length options. The chip thermistor is encapsulated in a polyimide tube, which acts as a dielectric barrier.

Engineering Information

  • Typical diameter: 0.037 inches
  • Leads: solid copper, polyurethane insulation
  • Material: epoxy, polyimide
  • Typical wire size: #32 AWG
  • Typical operating temperature range: 0°C to 70°C
  • Typical Dissipation Constant: 1mW/°C in still air*
  • Typical Time Constant: 4 seconds in still air*
  • E330 sensors RoHS compliant
  • Available in point-matched and interchangeable tolerances

*Depends on mounting
