T320/E320 Series

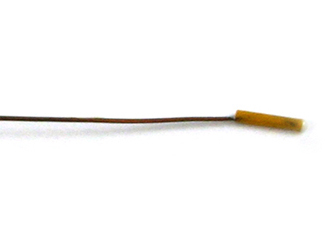

QTI’s T320/E320 micro thermistor are encapsulated with epoxy in polyimide tubes with polyesterimide insulated #38 AWG solid nickel leads. They feature parallel bonding and come in standard overall lengths of 3, 6 and 12 inches. These thermistor probes are ideal for use with small probe housings and applications that require fast thermal response time.

Engineering Information

  • Typical diameter 0.023 inches
  • Typical wire size #38 AWG
  • Leads: solid nickel, Polyesterimide insulation
  • Material: epoxy, polyimide
  • Typical Dissipation Constant: 0.2mW/°C in still air*
  • E320 sensors RoHS compliant
  • Available in point-matched and interchangeable tolerances

*Depends on mounting

T320/E320 Series Data Sheet  Contact Us
