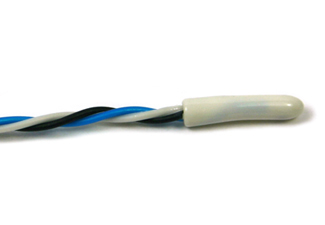

T310/E310 Series

The T310/E310 Series features sensors with a composite thermistor: one thermistor a 6,000 ohm Curve Z/D and the other a 30,000 ohm Curve M/E. With their 0.080 inch maximum tip diameter, these temperature sensors are ideal for applications where small size or fast response time are important factors.

Engineering Information

  • 6,000/30,000 composite, three leads with on common
  • Typical diameter: 0.08 inches
  • Leads: silver-plated copper, Kynar insulation
  • Material: epoxy, vinyl
  • Length: 24 to 36 inches
  • Typical operation temperature range: 0°C to 70°C
  • E310 sensors RoHS compliant
  • Available in interchangeable tolerances

T310/E310 Series Data Sheet  Contact Us
