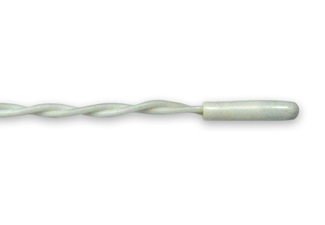

T300/E300 Series

QTI’s T300/E300 Series of encapsulated NTC thermistors are ideal for use in applications where long lead lengths, small size or consistency of tip size is important. The T300/E300 Series is an alternative to dipped epoxy coatings where coating diameter and coating length will have greater variations.

Engineering Information

  • Typical diameter:0.08 inches
  • Leads: Silver-plated copper, Kynar insulation
  • Material: epoxy, vinyl
  • Length: 24 to 36 inches
  • Typical operating temperature range: 0°C to 70°C
  • E300 sensors RoHS compliant
  • Available in point-matched and interchangeable tolerances
