Product Overview

T040 Series

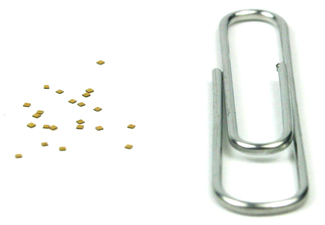

The T040 Series of gold thin-film terminated die are leadless NTC thermistor chips with pre-deposited high temperature solder.  They have leach resistant gold contacts on top and bottom surfaces.

Engineering Information

  • Part sizes 0.040 inches square to 0.011 inches square
  • Resistance values: from 100 ohms to 20M ohms
  • Available with gold or silver terminations
  • Hybrid attachment (wire bond/solder)
  • Ideal for reflow soldering die to board and wire-bonding die top side
  • Typical Time Constant: 10 seconds max in still air
  • Typical Dissipation Constant: 0.0625 W, derate to 0 at 125˚C
  • Tolerances: 1%, 2%, 5%, 10%
  • RoHS compliant
  • Available with pre-deposited solder
