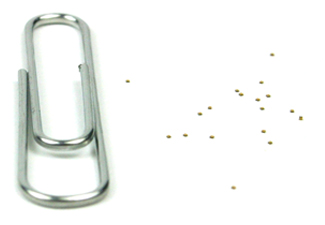

T020 Series

The T020 Series NTC thermistors are a good choice for temperature control, compensation, and over-temperature protection applications.  Because they are uncoated, suitable protection must be provided for the thermistor against the effects of harsh environments during operation or storage.

Engineering Information

  • Part sizes 0.040 inches square to 0.011 inches square
  • Resistance values: from 100 ohms to 20M ohms
  • Available with gold or silver terminations
  • Hybrid attachment (wire bond/epoxy)
  • Typical Time Constant: 10 seconds max in still air
  • Typical Dissipation Constant: 0.0625 W, derate to 0 at 125˚C
  • Tolerances: 1%, 2%, 5%, 10%
  • RoHS compliant
