Product Overview

6005 Series

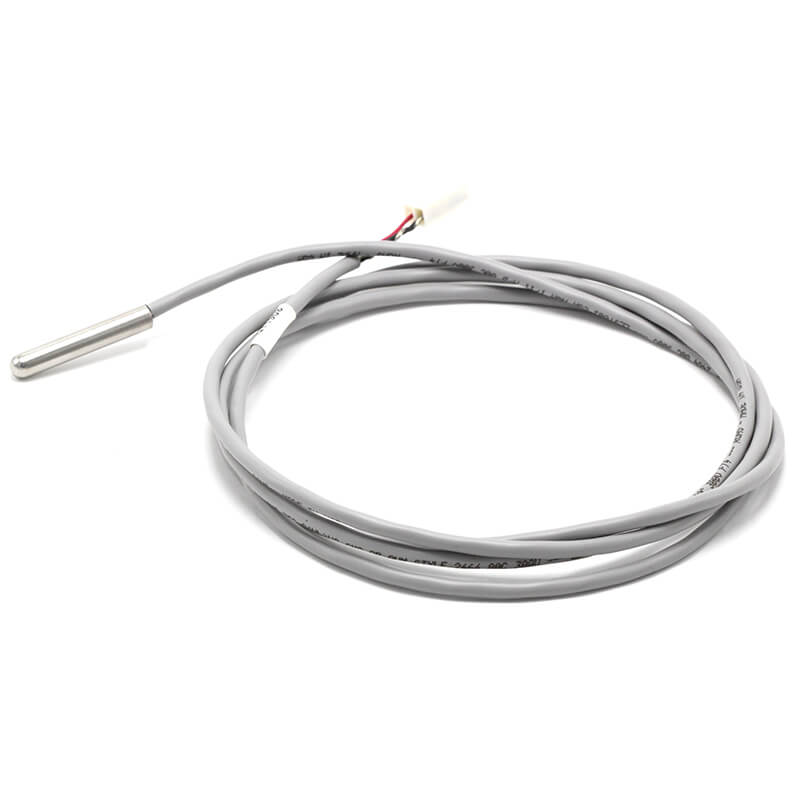

The 6005 Pool & Spa Series is a versatile general-purpose sensor for temperature measurement and control of liquid in pools, hottubs, jacuzzis and other similar applications. These sensors are usually secured to a pipe or duct in an pool or spa heating system using clips or cable ties to accurately measure the surface temperature of these elements. QTI can customize these sensors in a variety of ways. Sensor resistance values and accuracy, as well as cable length/color and housing material are all able to be specified.

Engineering Information

  • Choose from the following sensing elements: NTC thermistor, RTD, or thermocouple
  • Standard sizes are 0.040 inches to 0.250 inches in diameter
  • Versatile multi-purpose sensor
  • Housing material options: stainless steel, brass, titanium, Inconel, Hastelloy
  • Typical wire sizes #22 to #32 AWG
  • Moisture resistant
  • Termination type, cable length, housing style, and wire style can all be customized
  • Available in multiple accuracies and values
  • RoHS compliant options available

Documents and Catalogs

6005 Series Datasheet – Pool & Spa
